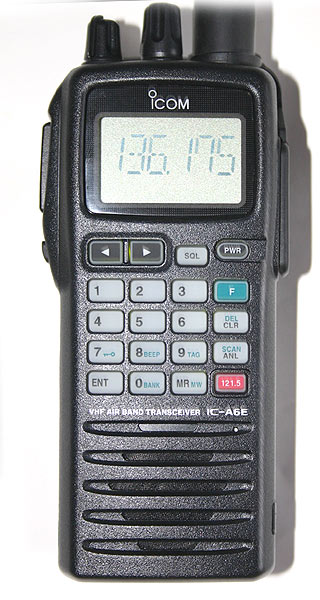

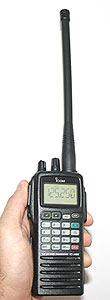

Equipo portátil VHF AM Banda
Aérea. Cobertura de frecuencia: Tx/Rx de 118
a 136,975 MHz. Potencia de salida a 5V DC: Alta ,
baja de 1 W . 200 canales de memoria. Tecla de acceso
directo a 121,5 MHz.

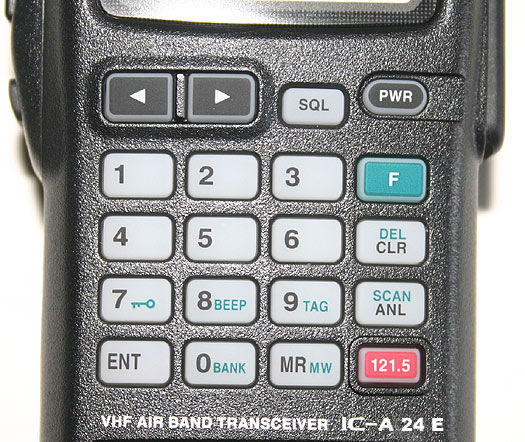

- Botones y pantalla de gran
tamaño
- Selección inmediata del canal de emergencia
121.5
- 50 memorias programables
- Búsqueda de frecuencias y de memorias
- Iluminación para uso nocturno
- Potencia de emisión de 5 W
- Batería de NiMh de alta capacidad (1.650
mAh)
- Robusta estructura resistente a la intemperie
|
|
ESPECIFICACIONES
General
• Frequency range : Tx/Rx 118.000–136.975MHz,
Rx 108.000–117.975MHz (IC-A24 only), Weather
161.650–163.275MHz
• Mode : AM (6K00A3E), WX FM (16K0G3E)
• Channel spacing : 25kHz
• No. of memory channels : 200 (20 Ch ×
10 banks)
• Power supply requirement: 7.4/7.2V DC (Battery
pack), 11.0V DC (External DC Jack)
• Current drain (at 7.2 V DC) :Tx 1.5A typical,
Rx Max. audio 300mA typical, Stand-by 70mA typical
• Frequency stability : ±5ppm
• Operating temp. range : –10°C to +60°C;
+14°F to +140°F

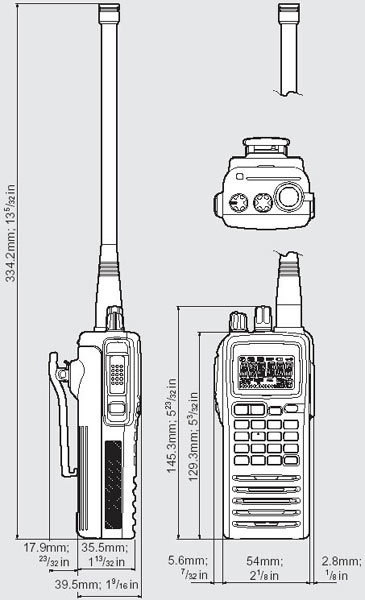

• Dimensions (W×H×D) : 54×129.3×35.5
mm, (2 1/8×5 3/32×11 3/32 in), (projections
not included)
• Weight (approx.) : 430g; 15.2oz, (with antenna
and BP-210N)

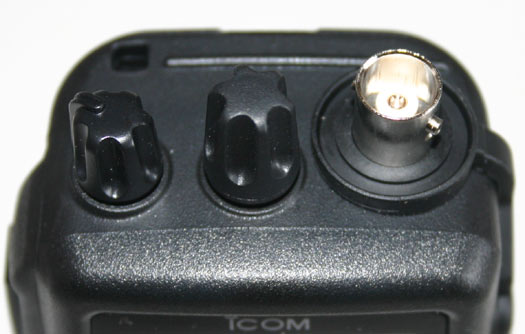

• Antenna impedance : 50? (BNC type)
Transmitter
• Output power (at 7.2V DC): 5.0W typ. (PEP),
1.5W typ. (CW)
• Modulation system : Low level modulation
• Modulation limiting : 70–100%
• Audio harmonic distortion : Less than 10% (at
60% mod.)
• Hum and noise ratio : More than 35dB
• Spurious emissions : More than 46dB (Except
operating freq. ±62.5kHz point)

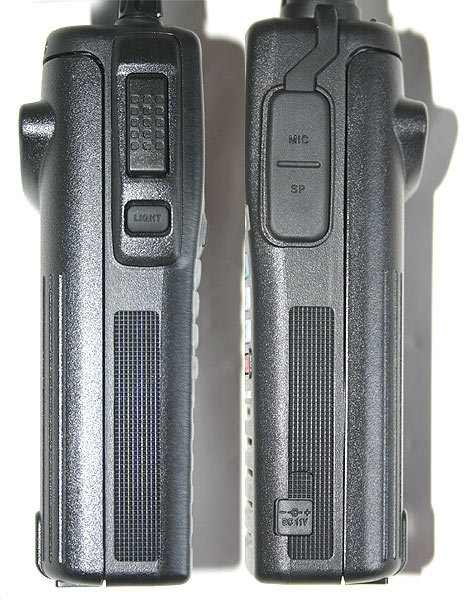

• Microphone connector : 3-conductor 2.5 (d)
mm (1/10”)/ more than 100k?
Receiver
• Intermediate frequency : 1st/2nd 30.05MHz/450kHz
• Sensitivity (typical) : VOR (AM 6dB S/N) Less
than 0.71µV, COM (AM 6dB S/N) Less than 0.5µV,
WX (FM 12dB SINAD) Less than 0.22µV
• Selectivity : More than 7.5kHz/–6dB, Less
than 25kHz/–60dB
• Hum and noise : More than 40dB
• Spurious response : AM More than 60dB, FM More
than 30dB
• Audio output power : More than 500mW typ. with
an 8? load, 30% modulation

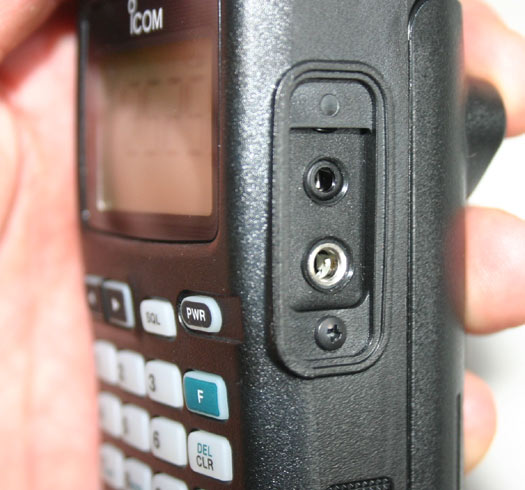

• Ext. speaker connector : 3-conductor 3.5 (d)
mm (1/8”)/ 8?

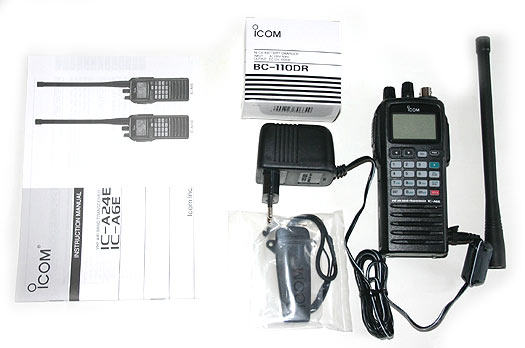

Supplied Accessories

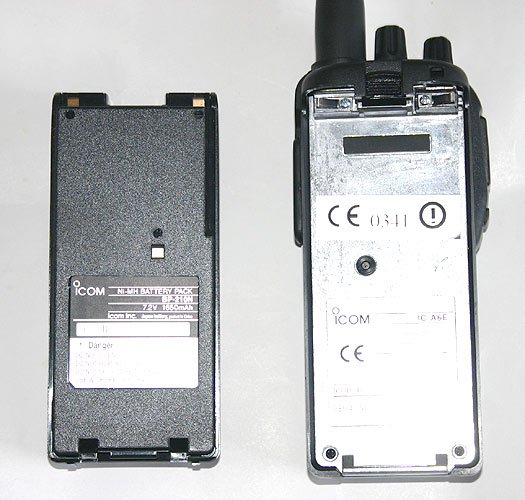

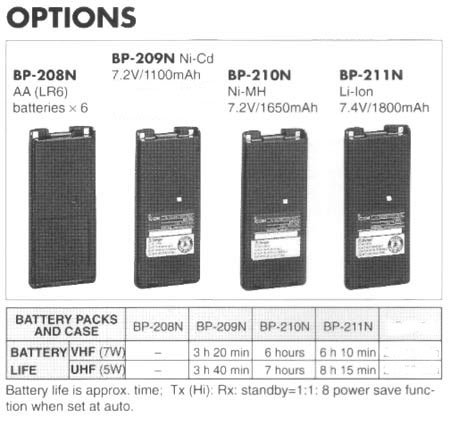

• Battery pack, BP-210N (standard model, NI-MH,
1650 mAh) or battery case, BP-208N (Sport model)
• Belt clip, MB-103
• Carrying case, LC-159 (standard model only)

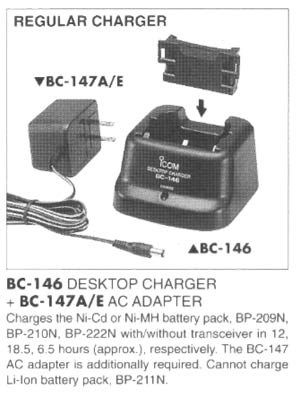

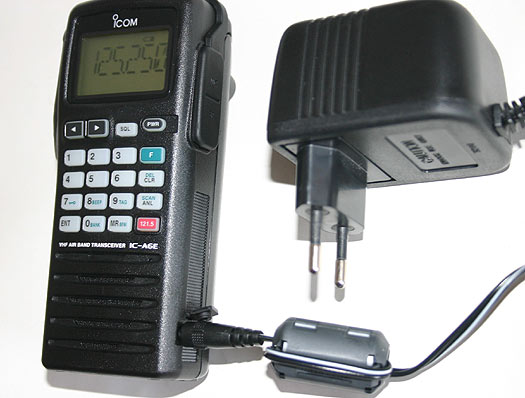

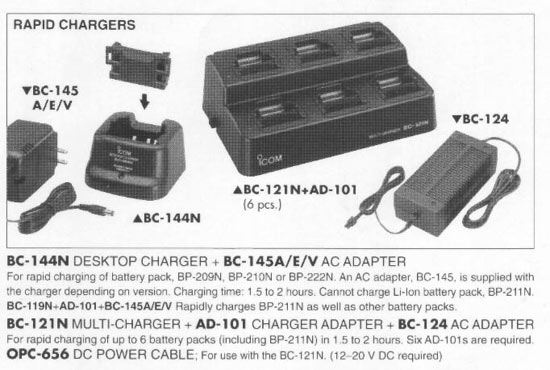

• Wall charger, BC-110AR/DR (standard model only),
110V and 220V versions available

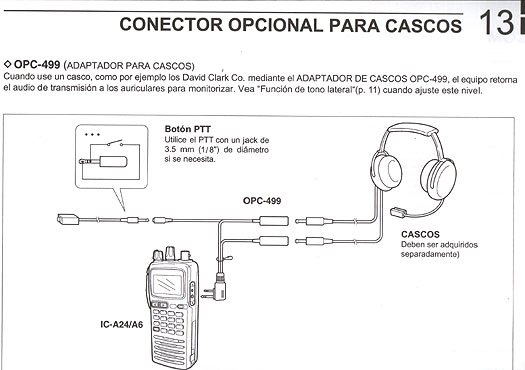

• Headset adapter, OPC-499 (standard model only)
• Antenna, FA-B02AR
• Handstrap
|
